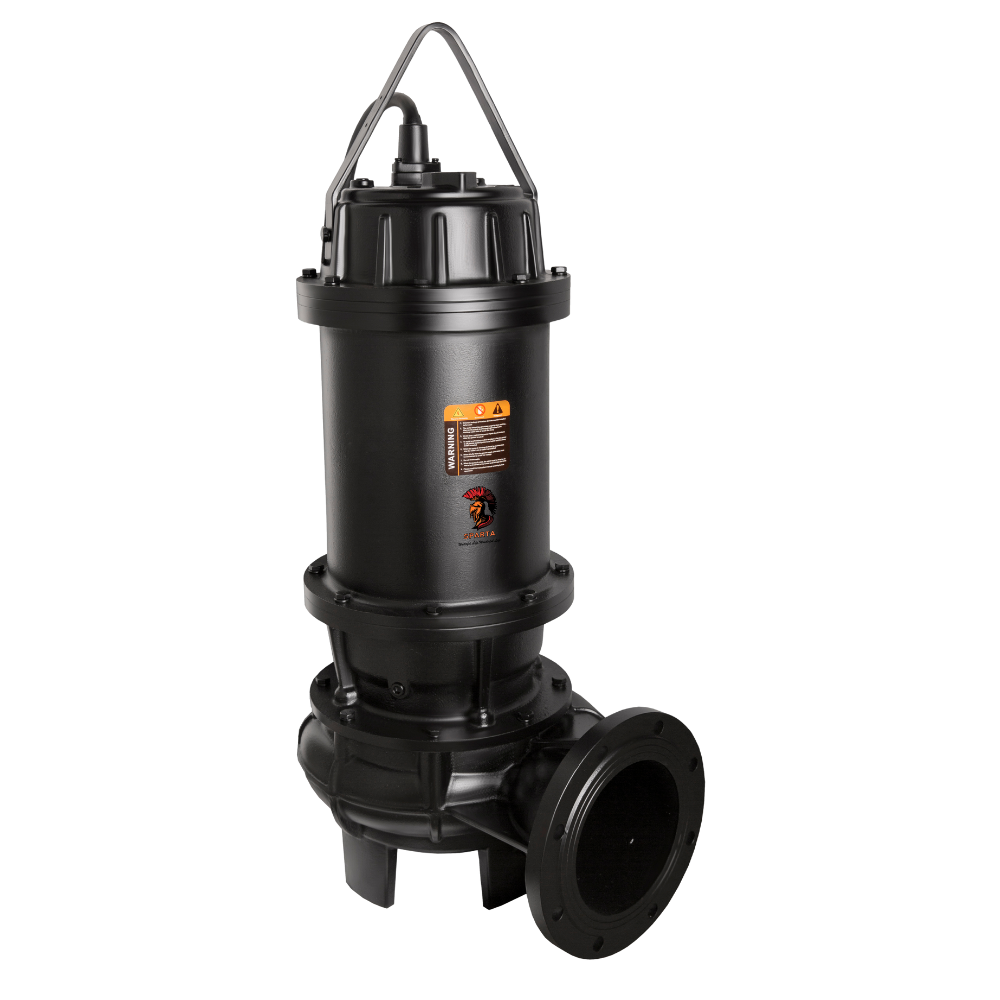

Sewage Pump 3 Phase

Sewage Pump 3 Phase

APPLICATIONS:

Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum ofφ100mm.

Get Enquiry
Category:

Description

MOTOR:

Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP68
Continuous service S1
Thermal protector for single phase
Three-phase 380V/50Hz

COMPONENTCONSTRUCTION:

Pump body: Cast iron
Suction filter: Cast iron
Impeller: Cast iron
Motor shaft: AISI304 SS
Mechanical seal: Alloy/Ceramic-Graphite SIC-SIC/
Ceramic Graphite (1HP, 1.5HP&2HP)
Cable: 8m power cable

OPERATING CONDITIONS:

5m maximum immersion depth
Liquid temperature up to 35°C
Maximum ambient temperature 40°C
