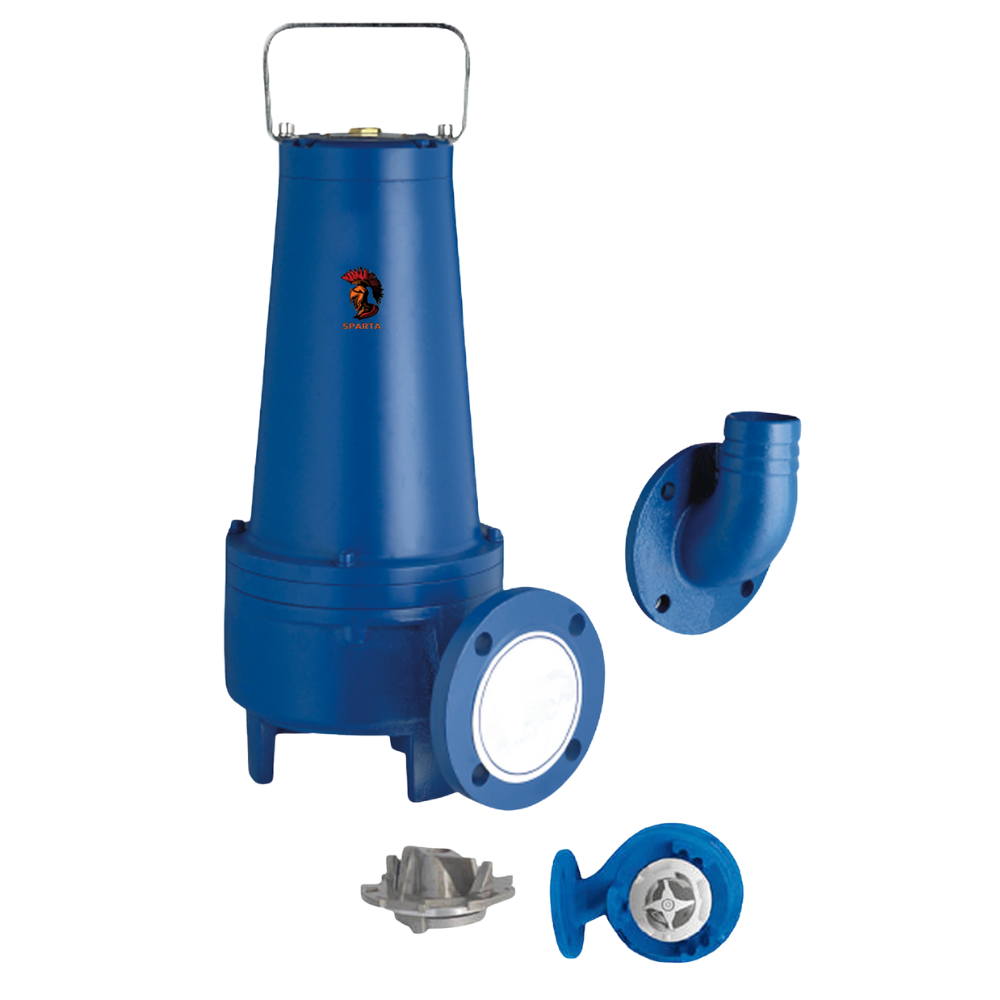

Sewage Cutter Pump 3 Phase

Sewage Cutter Pump 3 Phase

APPLICATIONS:

The Cutter pumps are specifically designed for pumping untreated waste water from domestic, commercial or municipal sources. The high discharge pressure enables transfer of waste water over longer distances. This pump is designed to easily chop fibrous material like gloves, rope, and cloth in water, preventing them from tangling causing or blockages. It also can reduce energy consumption and keep downtime costs to a minimum, while maintaining peak performance throughout the system life.

Get Enquiry
Category:

Description

MOTOR:

Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP68
Continuous service S1
Three-phase 380V/50Hz

COMPONENT CONSTRUCTION:

Pump body: Cast iron
Suction filter: AISI304 SS
Impeller: Cast iron
Motor shaft: AISI304 SS
Mechanical seal: Alloy/Ceramic-Graphite
Cable: 8m power cable

OPERATING CONDITIONS:

5m maximum immersion depth
Liquid temperature up to 35°C
Maximum ambient temperature 40°C
