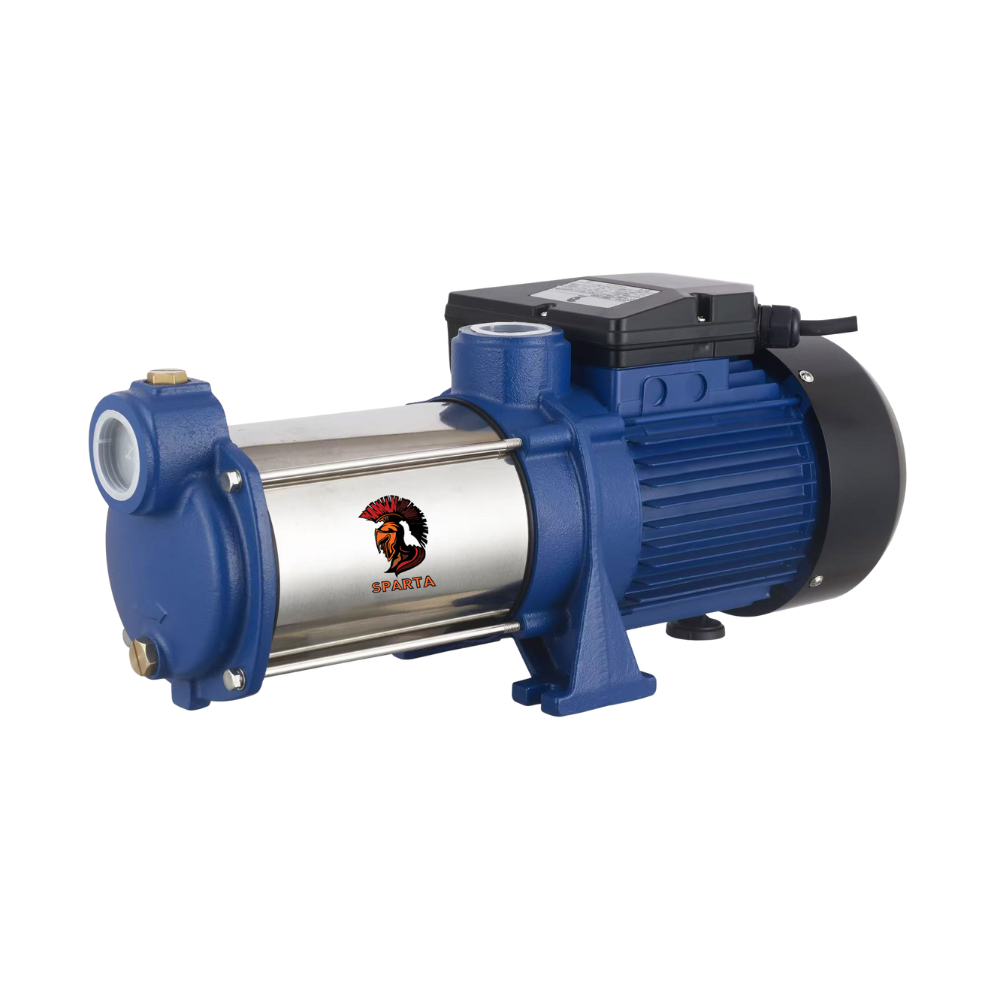

Horizontal Multistage Pumps

Suitable for use with clean water even where air is present and with liquids that are not chemically aggressive towards the materials from which the pump is made.The pumps are designed to pump wate r even in cas e s whe r e air i s pr e s ent. As a r e sult o f the ir qui etne s s , reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Get Enquiry
Category:

Description

MOTOR:

  • Two-Pole induction motor(n=2850 r.p.m)
  • Insulation class B
  • Protection Ip44
  • Continuous services S1
  • Thermal Protector for single phase
  • Single-phase 220V/50Hz

COMPONENT CONSTRUCTION:

  • Pump body: Cast iron + Stainless steel
  • Pump support: Cast iron
  • Impeller: AISI304 SS
  • Motor shaft: AISI304 SS
  • Mechanical seal: SIC/Graphite

OPERATION CONDITIONS:

  • Liquid Temperature up to 60°C
  • Ambient Temperature up to 40°C
  • Total suction lift up to 8m

SWIMMING POOL PUMP

APPLICATIONS:

Filter centrifugal pumps are designed forcleaning swimming pool,They are suitable to transfer high volumes of water (not exceeding 45°C) against low head.The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.

OPERATION CONDITIONS:

  • Two-pole induction motor(n=2850 r.p.m)
  • Insulation Class B
  • Protection IP44
  • Continuous service S1
  • Thermal protector for single phase
  • Single-phase 220V/50Hz
  • Three-phase 380V/50Hz

MOTOR:

  • Liquid Temperature up to 45°C
  • Ambient Temperature up to 40°C
  • Total suction lift up to 5m

COMPONENT CONSTRUCTION:

Pump body: Techno-polymer
Impeller: Techno-polymer
Motor shaft: AISI304 SS
Mechanical seal: SIC/Graphite
