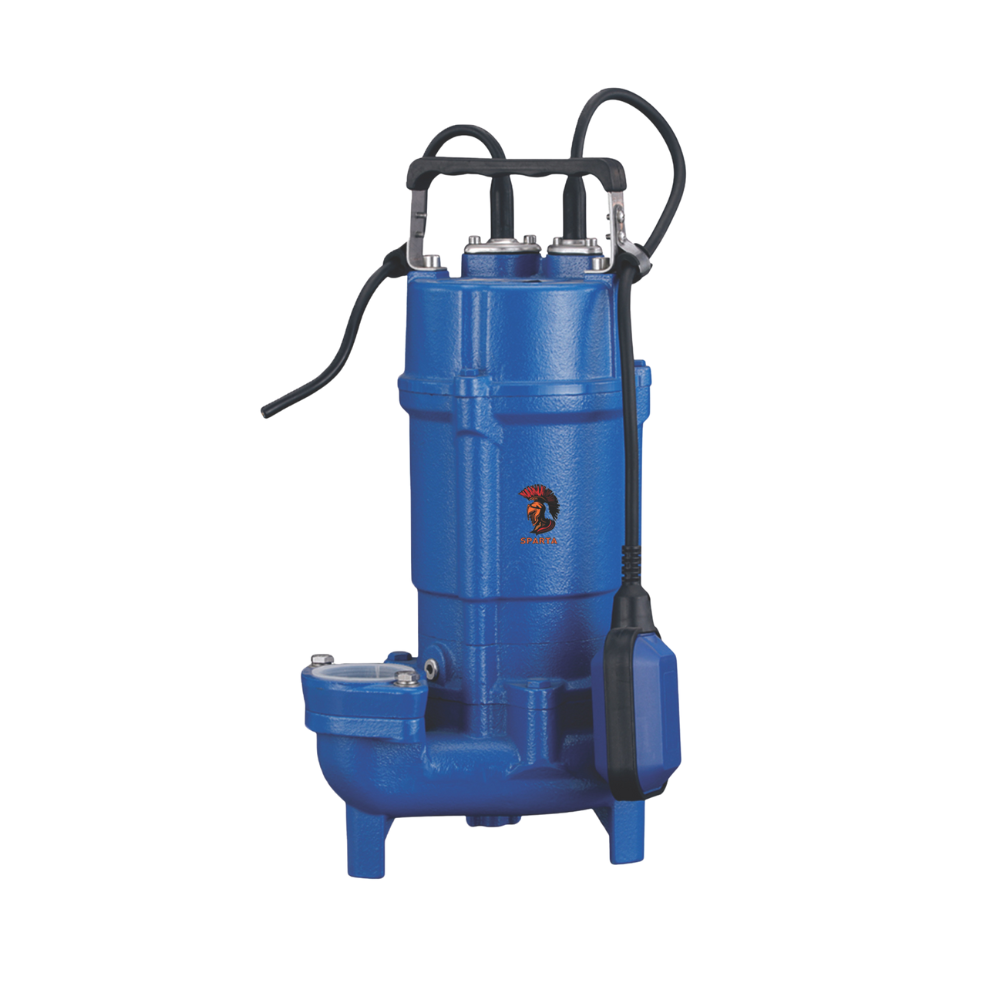

Cast Iron Sewage Submersible Pump Single Phase

Cast Iron Sewage Submersible Pump Single Phase

APPLICATIONS:

Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum of φ 35mm.

MOTOR:

Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP68
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz

Get Enquiry
Category:

Description

COMPONENT CONSTRUCTION:

Pump body: Cast iron
Suction filter: Cast iron
Impeller: Cast iron
Motor shaft: AISI304 SS
Mechanical seal: SIC-SIC/Ceramic-Graphite
Cable: 8m power cable with plug

OPERATING CONDITIONS:

5m maximum immersion depth
Liquid temperature up to 35°C
Maximum ambient temperature 40°C
